1776493-2
Manufacturer:
TE Connectivity
Mfr.Part #:
1776493-2
Datasheet:
Description:

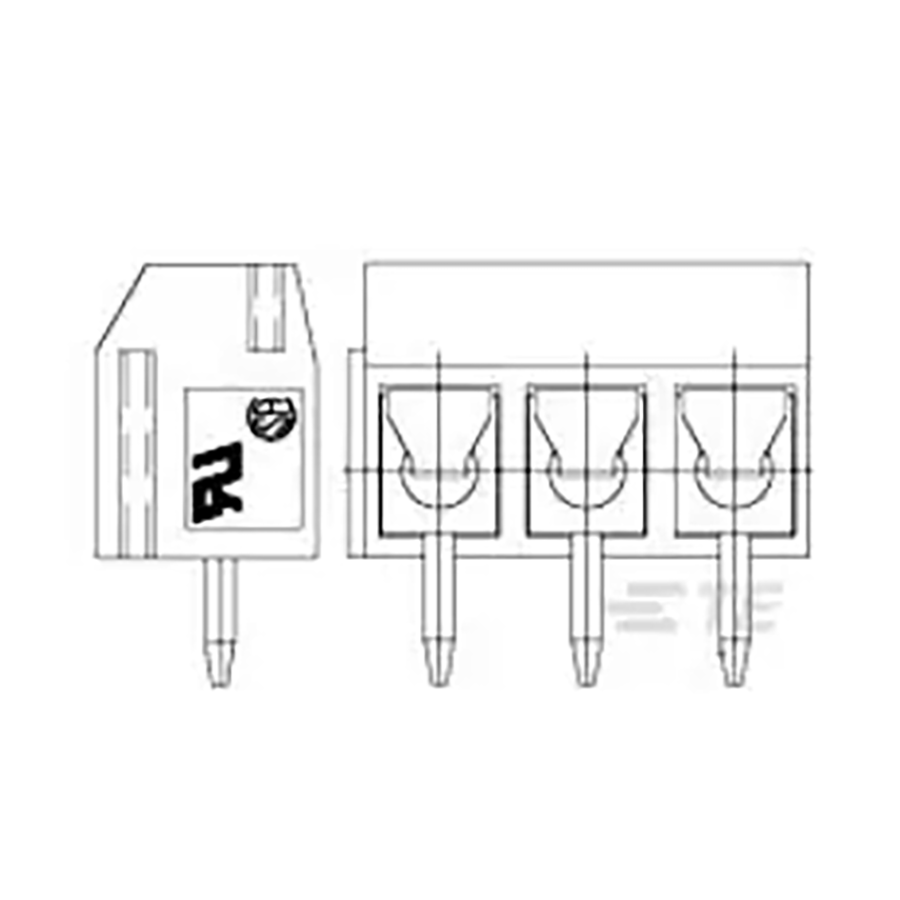

Terminal Blocks Through Hole 2 5.08 mm 10 A 300 V 22 AWG to 14 AWG
| Parameter | Value |
|---|---|
| Termination | Screw |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Bulk |
| Voltage Rating | 300 V |
| Radiation Hardening | No |
| RoHS | Compliant |
| Voltage | 300 V |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | 5.08 mm |
| Current | 10 A |
| Current Rating | 10 A |
| Max Current Rating | 10 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Color | Blue |
| Number of Contacts | 2 |
| ELV | Compliant |
| Connector Type | Receptacle |
| Thread Size | M2.6 |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Housing Material | Nylon |
| Number of Positions Per Level | 2 |
| Number of Levels | 1 |
| Connector System | Wire-to-Board |
| Max Voltage Rating (AC) | 250 V |
| Wire Gauge (Max) | 22 AWG |
| Wire Gauge (Min) | 22 AWG |
| Housing Color | Blue |
| Plating | Chromate, Galvanized, Steel |
| Tail Length | 3.5 mm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 week ago) |
| Connection Method | Screw |
| Wire Gauge Range | 22 AWG to 14 AWG |
Stock: 1387
Distributors
pcbx
pcbxUnit Price$0.63863
Ext.Price$0.63863
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.63863 | $0.63863 |
| 10 | $0.46508 | $4.65080 |
| 25 | $0.40524 | $10.13100 |
| 50 | $0.36506 | $18.25300 |
| 100 | $0.31974 | $31.97400 |
| 300 | $0.29110 | $87.33000 |
| 500 | $0.26503 | $132.51500 |
| 1000 | $0.22656 | $226.56000 |
